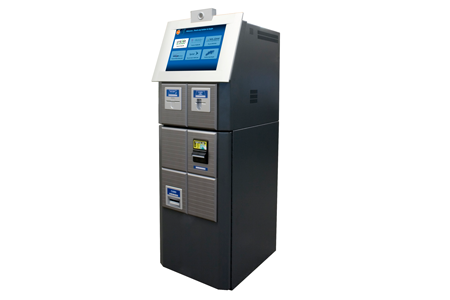

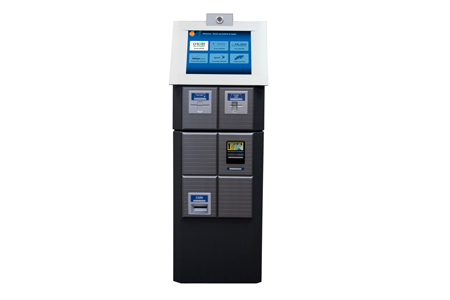

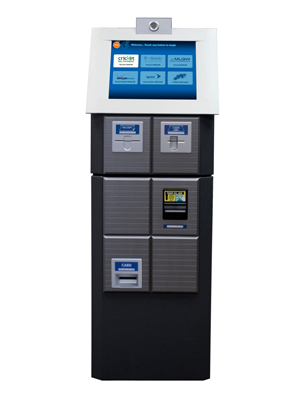

GK1000 Series

Standalone Kiosk Solution

Genmega presents the GK1000 non-cash dispensing transactional kiosk, designed to deliver your self-service solution in an economical yet feature-rich and user friendly platform.

The GK1000 is built on a UL291 business-hours vault can be configured with an array of self-service solution devices including Ticket Printer, Bill Acceptor(s) and Card Dispensing modules.

The small footprint design of the Genmega GK1000 is packed with other high-end features like a 15” touch-screen LCD panel and uses a Windows 7™ operating environment, allowing maximum flexibility for solution design.

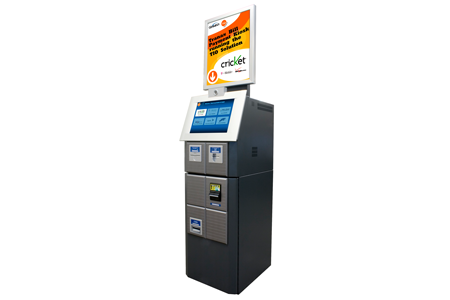

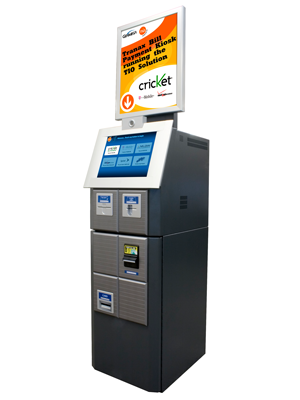

High-Brightness Topper

  • Dimensions 15” W x 19.5” H
  • Customizable Graphic Panel Insert

Touch-Screen LCD Display

  • High-Res 15” touch screen LCD panel
  • 1024 x 768 XVGA resolution
  • 250 cd/m2 Luminance

Receipt Printer

  • 80mm Thermal Receipt Printer
  • Automatic Paper Loading and Cutting
  • 40 Characters per line
  • 200 DPI mono-graphic printing

Ticket Printer (optional)

  • 300 dpi print head for enhanced quality
  • Stepper motor driven rotary cutter
  • USB Interface for easy integration

Card Dispenser (optional)

  • 180 mm standard hopper
  • Approx 140 embossed cards or 200 non-embossed cards

Main PC Platform

  • Intel ATOM® N270 Processor
  • Windows 7 Professional (32bit)
  • Solid-State Hard Disk Drive
  • TCP/IP Ethernet

Camera (optional)

  • Digital Security Camera

Magnetic Card Reader

  • DIP Type card reader
  • EMV Optional

Bill Acceptor (optional)

  • Bill Acceptor - $1, $5, $10, $20, $50 & $100 denomination bill acceptor(s) with 500 and 1000 note cassette capacities

Security

  • UL291 Business Hours Vault
  • LaGarde electronic lock
  • Accessed from inside top cabinet

Dimensions

  • Height = 56”
  • Width = 17”
  • Depth = 21”
  • Weight = 245 lbs.

Power Requirements

  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Temperature Requirements

  • In storage: 32°F - 104°F (0°C ~ 49°C)
  • While operating: 45°F - 95°F (5°C ~ 35°C)

Allowable Humidity

  • In storage : 10% < RH < 90%, non-condensed
  • While operating : 15% < RH < 85%, non-condensed
