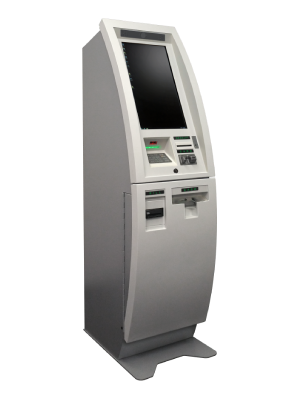

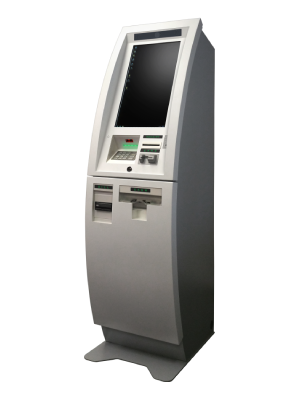

Universal Kiosk

The Future of Payment Technology

Genmega introduces the new Universal Kiosk, the future of payment technology. Featuring a large 21” vertical screen to attract attention and provide a unique canvas for your self-service application.

Standard components include card reader, receipt printer and keypad, useful for a variety of financial transactions. The lower half of the kiosk can be configured with bill acceptors, check imagers, barcode scanners, ticket printers, and we can help integrate most any custom components.

Whether used for Bill Pay, Product Purchase, Transaction Facilitation or Informational, the Universal Kiosk can be tailored with a wide range of custom devices to meet the specific needs of your application.

Main PC Platform

  • Intel ATOM® N2550 Processor
  • Windows 7 Professional
  • 500GB Hard Disk Drive
  • TCP/IP Ethernet

Touch-Screen LCD Display

  • High-Res 21.5” touch screen LCD panel
  • 1920 x 1080 XVGA resolution

Receipt Printer

  • 80mm Thermal Receipt Printer
  • Automatic Paper Loading and Cutting
  • 40 Characters per line
  • 200 DPI mono-graphic printing

Magnetic Card Reader

  • DIP Type card reader
  • EMV Optional

PIN Entry Device

  • 16-key alphanumeric keypad
  • PCI Certified
  • Triple-DES (TDES) compliant EPP

Ticket Printer (optional)

Card Dispenser (optional)

Barcode Scanner (Optional)

Camera (optional)

  • Digital HD Camera

Bill Acceptor (optional)

  • $1, $5, $10, $20, $50 & $100 denomination bill acceptor(s) with 500 and 1000 note cassette capacities

Dimensions

  • Height = 65”
  • Width = 18”
  • Depth = 23”
  • Weight = 285 lbs.

Power Requirements

  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Temperature Requirements

  • In storage: 32°F - 104°F (0°C ~ 49°C)
  • While operating: 45°F - 95°F (5°C ~ 35°C)

Allowable Humidity

  • In storage : 10% < RH < 90%, non-condensed
  • While operating : 15% < RH < 85%, non-condensed
