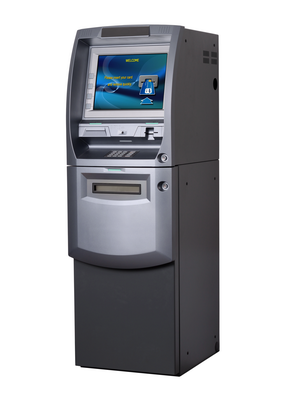

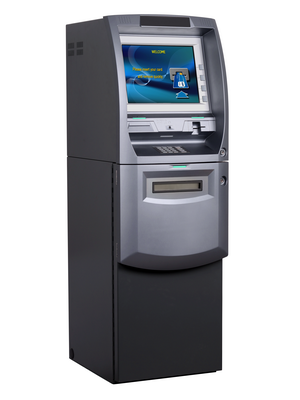

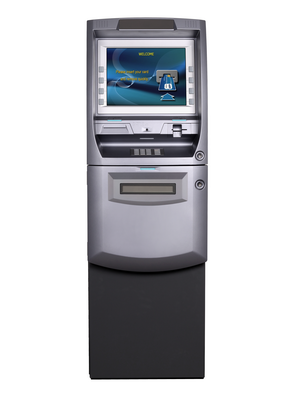

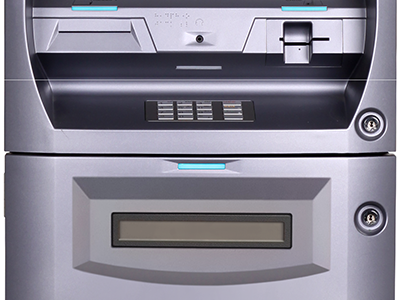

C6000P Series

Retail ATM Evolution with Presenter module

Genmega understands that maximizing revenue and delivering your retail solution in a reliable and customer friendly form is critical to your business.

The Genmega C6000P ATM includes high-end features including a 15" LCD with function key or 15" touch screen LCD and 2K cassette, eye catching modern design and host of hardware options driven by a Microsoft Windows CE™ 6.0 operating environment for maximum flexibility.

High-Brightness Topper

  • Optional High-Brightness Topper Sign
  • Customizable Graphic Insert
  • Optional Video Topper

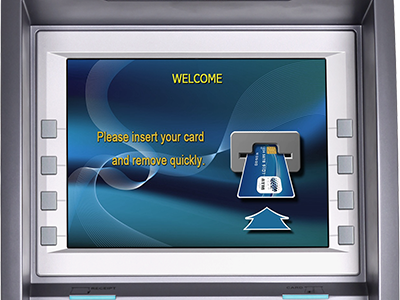

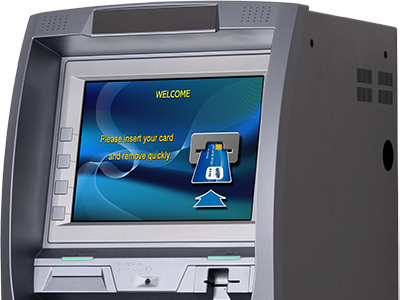

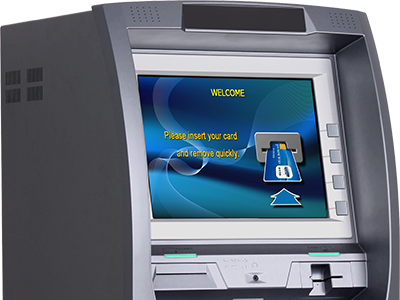

Monitor

  • 15" Color TFT-LCD panel
  • LED Back-light
  • High-Res 15" touch screen LCD panel (Optional)
  • 1024 x 768 XVGA resolution
  • 250 cd/m2 Luminance

Printer

  • 80mm Thermal Receipt Printer
  • 40 Characters per line
  • 200 DPI mono-graphic printing

PIN Entry Device

  • 16-key alphanumeric keypad
  • PCI V3.X Certified
  • Triple-DES (TDES) compliant EPP

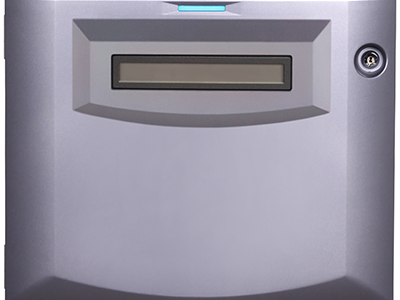

Cash Dispenser

  • Up to 4 x 2000 Notes Removable Cassette

CPU

  • Coretex-A8 CDPU (800MHz)
  • 256MB RAM / WinCE 6.0

Card Reader

  • EMV (Dip type)

ADA

  • Voice Guidance
  • Lighted Action Indicators
  • Accessible Keypad Layout

Security

  • UL291 Business Hours Vault
  • Electronic lock
  • Kaba Mas Cencon Series Lock (optional)
  • Level 1 Vault (optional)

Communication

  • 56,000 bps dial-up modem
  • TCP/IP Ethernet connection
  • - Onboard SSL
  • Kaba Mas Cencon Series Lock (optional)
  • Level 1 Vault (optional)

Dimensions

  • Height = 68”
  • Width = 29”
  • Depth = 22”
  • Weight = 429 lbs (With 2H HPCDU cash dispenser and packing)

Power Requirements

  • AC 110/220 V ±10%, 50/60 Hz, 145 Watts
