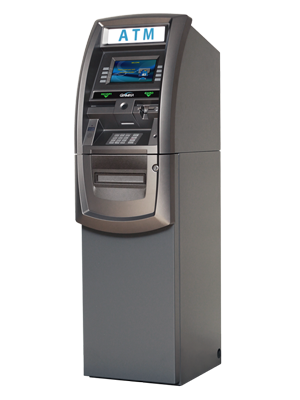

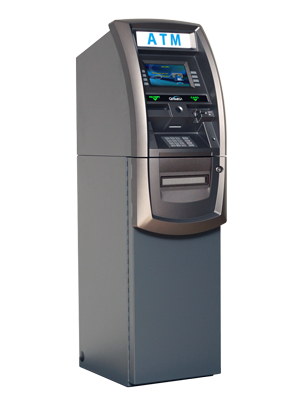

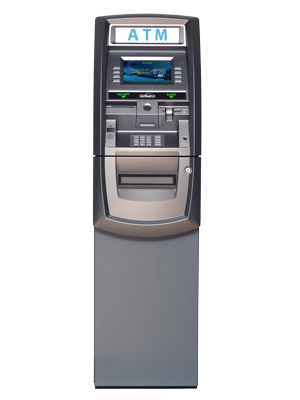

Genmega presents the G2500P ATM .

Building on the great reputation of the 2500 series retail ATM, the G2500P model ads a Motorized Presenter module and high-performance cash dispenser to this already popular and reliable platform.

The G2500P comes standard with an 8" high-resolution wide-screen LCD, which can be upgraded to a 10.2" touch screen. The receipt printer can also be upgraded to a 3" graphics-capable for custom branding or coupons. The integrated topper can also be paired with a selection of energy-efficient LED toppers to add visual impact and attract customers.

The G2500P with Presenter CDU can be ordered in single, dual and four cassette capacity for maximum flexibility. Designed for retail and off-premise locations, the G2500P comes loaded with all the features you expect, including an optional EMV card reader and and also provides additional hardware configuration choices allowing you to custom fit each machine to the needs of your customer or location.

Topper

  • Optional LED Topper Sign
  • Can accept custom inserts

Integrated Illuminated Sign

  • High Visiblility LED Sign
  • Attract Customers

LCD Screen

  • 8 inch diagonal 32-bit color
  • Backlit TFT LCD panel
  • 800x480 Resolution
  • 10.2 inch touch-screen (Optional)
  • Customizable Ad Screens

Printer

  • 56mm (2" standard)
  • 80mm (3" optional)
  • Graphics Capable with 3"

PIN Entry Device

  • 16-key alphanumeric keypad
  • PCI/Interac Certified
  • Triple-DES (TDES) compliant EPP

Communication

  • 56Kb Internal Model
  • TCP/IP Ethernet - SSL

CPU

  • Cortex-A8 CPU (800MHz)
  • DDR2 256MB SRAM memory
  • 512MB Flash Memory
  • Windows CE 6.0

Card Reader

  • DIP Type card reader
  • EMV Optional

ADA

  • Voice Guidance
  • Lighted Transaction Guidance
  • Accessible Keypad Layout

Security

  • UL291 Business Hours Vault
  • Electronic Locks
  • A series Lock
  • Kaba MasCencon Locks

Cash Dispenser

  • 1000 Note Removable Cassette (SCDU)
  • Up to 4 x 2000 Note Removeable Cassette (HCDU)

Dimensions

  • Height = 63”
  • Width = 29”
  • Depth = 21”
  • Weight = 243 lbs (With HPCDU cash dispenser and packing)

Power Requirements

  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Temperature Requirements

  • In storage: 32°F - 104°F (0°C ~ 49°C)
  • While operating: 45°F - 95°F (5°C ~ 35°C)

Allowable Humidity

  • In storage : 10% < RH < 90%, non-condensed
  • While operating : 15% < RH < 85%, non-condensed
