Onyx Series

The Future of ATMs in a Sleek, Upscale Package

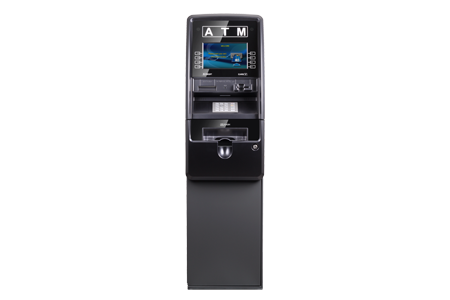

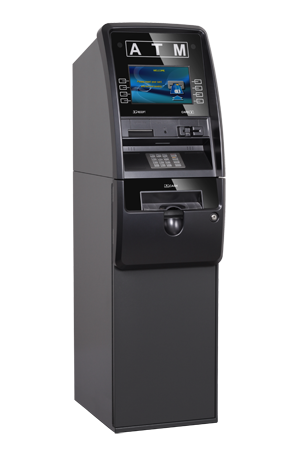

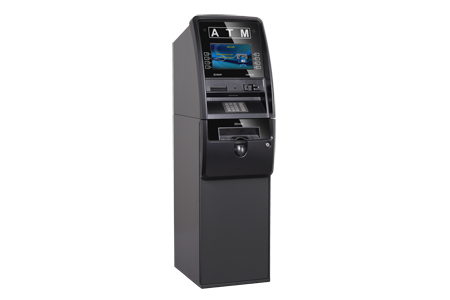

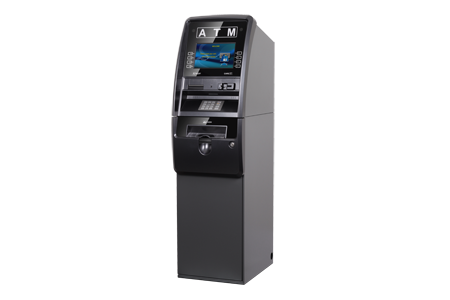

Genmega introduces the Onyx series of ATMs for any ATM environment. With an up-to-date look and a feature set sure to impress, the Onyx provides the latest in ATM technology for any market. Whether in a hotel, club or gas station, the Onyx ATM will stand out in a location while still looking financial to encourage transactions.

Boasting a 10.2 wide screen, or an optional 12” touch screen, a security reflective front, and touch keypad, the Onyx provides the future of ATM technology. The strong cabinet, tough exterior and security enhancements, however, make it durable enough for any location. An optional 3” printer upgrade allows for graphics and couponing to complete a full ATM product offering.

With all of the cassette options, and a presenter option, the Onyx is a flexible solution to meet a locations needs. The Onyx supports all Genmega CDUs and other manufacturer as well, giving a wide variety of dispenser options to tailor the solution to the location.

Topper

  • Optional LED Topper Sign
  • Can accept custom inserts

Integrated Illuminated Sign

  • High Visiblility LED Sign
  • Attract Customers

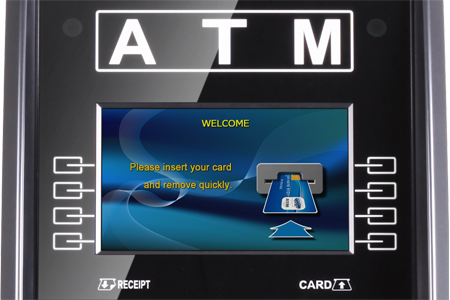

LCD Screen

  • 10.2 inch wide 32-bit color
  • Backlit TFT LCD panel
  • 1280x800 Resolution
  • 12 inch touch-screen (Optional)
  • Customizable Ad Screens

Printer

  • 56mm (2" standard)
  • 80mm (3" optional)
  • Graphics Capable with 3"

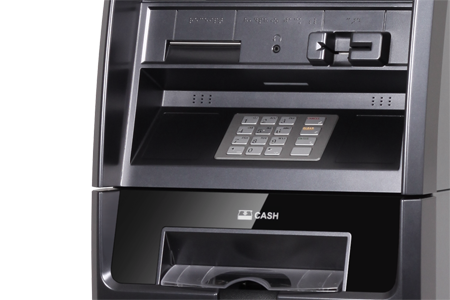

PIN Entry Device

  • 16-key alphanumeric keypad
  • PCI Certified
  • Triple-DES (TDES) compliant EPP

Communication

  • 56Kb Internal Model
  • TCP/IP Ethernet - SSL

CPU

  • Cortex-A8 CPU (800MHz)
  • DDR2 256MB SRAM memory
  • 512MB Flash Memory
  • Windows CE 6.0

Card Reader

  • DIP Type card reader
  • EMV Optional

ADA

  • Voice Guidance
  • Lighted Transaction Guidance
  • Accessible Keypad Layout

Security

  • UL291 Business Hours Vault
  • Electronic Locks
  • A series Lock
  • Kaba MasCencon Locks

Cash Dispenser

  • 1000 Note Removable Cassette (SCDU)
  • Up to 4 x 2000 Note Removable Cassette (HCDU)

Dimensions

  • Height = 63”
  • Width = 27”
  • Depth = 19”
  • Weight = 175 lbs (With SCDU cash dispenser and packing)

Power Requirements

  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Temperature Requirements

  • In storage: 32°F - 104°F (0°C ~ 49°C)
  • While operating: 45°F - 95°F (5°C ~ 35°C)

Allowable Humidity

  • In storage : 10% < RH < 90%, non-condensed
  • While operating : 15% < RH < 85%, non-condensed
