GT3000 Series

Pursuing ultimate versatility of installation

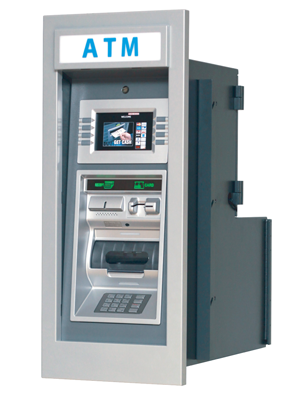

Genmega introduces the GT3000 series through-the-wall ATM. Designed and intended as a true through-the-wall machine, the GT3000 retains all the features and options of a retail floor model ATM in a small, compact weather resistant chassis, perfect for tight spaces, Kiosks or anywhere location space is valuable.

The GT3000 uses a 7" high-resolution wide-screen LCD, 2" receipt printer and can be ordered with a fixed cassette or rear-load removalble cassette dispenser.
There is also an optional Rear service-panel to provide secure loading and management fuctions.

While the small footprint TTW chassis is all new, the GT3000 serial ATM uses existing Genmega components, so service and maintenance remain easy and familiar. The GT3000 provides an economical through-the-wall solution.

Integrated Illuminated Sign

  • High Visiblility LED Sign
  • Attract Customers

LCD Screen

  • 7 inch diagonal 32-bit bolor
  • Backlit TFT LCD panel
  • 800x480 Resolution
  • Customizable Ad Screens

Printer

  • 56mm (2" standard)

PIN Entry Device

  • 16-key alphanumeric keypad
  • PCI/Interac Certified
  • Triple-DES (TDES) compliant EPP

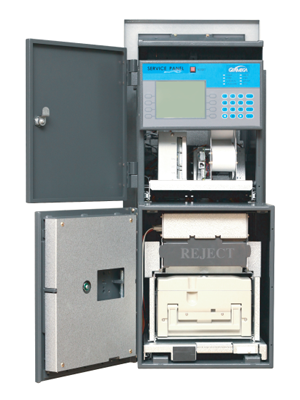

Rear Service Panel

  • Optional rear service panel

Communication

  • 56Kb Internal Model
  • TCP/IP Ethernet - SSL

CPU

  • Cortex-A8 CPU (800MHz)
  • DDR2 256MB SRAM memory
  • 512MB Flash Memory
  • Windows CE 6.0

Card Reader

  • DIP Type card reader
  • EMV Optional

ADA

  • Voice Guidance
  • Lighted Transaction Guidance
  • Accessible Keypad Layout

Security

  • UL291 Business Hours Vault
  • Electronic Locks
  • A series Lock
  • Kaba MasCencon Locks

Cash Dispenser

  • 800 Note Fixed Cassette (TCDU)
  • 2000 Note Rear-Load Removable Cassette

Dimensions

  • Height = 52”
  • Width = 19”
  • Depth = 34”
  • Weight = 212 lbs (With TCDU cash dispenser and packing)

Power Requirements

  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Temperature Requirements

  • In storage: 32°F - 104°F (0°C ~ 49°C)
  • While operating: 45°F - 95°F (5°C ~ 35°C)

Allowable Humidity

  • In storage : 10% < RH < 90%, non-condensed
  • While operating : 15% < RH < 85%, non-condensed
