GT5000 Series

"Presenting" the GT5000 Series TTW ATM

Genmega introduces the GT5000 series ATM. A high performance yet economical Through-The-Wall ATM solution with the look and feel of a full bank ATM. Designed for wall or Kiosk installation, The GT5000 series makes new TTW installation or replacements a snap. Built with the same compact modulear components as your existing Genmega machines and engineered for easy installation and reliable operation.

The GT5000 inclues high-end features like a 15" High Bright LCD which support custom advertisements and a 3-cassette cash dispenser with motorized cash presenter. A new Touch-Screen rear-service panel allows convenient and safe access for ATM Operator and Service personal.

The GT5000 series ATM is ADA compliant and Chip Card(EMV) ready, including a PCI/Interac certified encrypting PIN pad (EPP), a voice guidance system, and lighted action indicators (including lighted keypad).
Features of a high end Through-The-Wall ATM with the low maintenance and reliability that Genmega delivers makes this an excellent TTW solution.

Integrated Illuminated Topper Sign

  • High Visiblility LED Sign
  • Attract Customers

LCD Screen

  • 15 inch color TFT-LCD Panel
  • High bright LED backlight (800 cd/m2)
  • 1024x768 (XGA) Resolution

Printer

  • 80mm / 3" Receipt Printer
  • 200 DPI monographic printing

PIN Entry Device

  • 16-key alpha numeric keypad
  • PCI/Interac Certified
  • Triple-DES (TDES) EPP

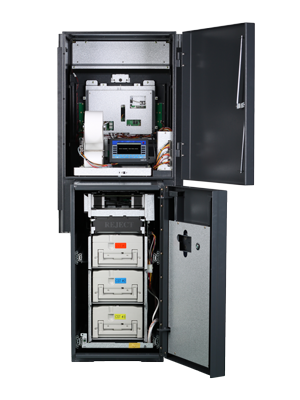

Rear Service Panel

  • 7 inch color touch screen
  • Backlit TFT LCD Panel
  • 800x480 Resolution

Communication

  • 56Kb Internal Model
  • TCP/IP Ethernet - SSL

CPU

  • Cortex-A8 CPU (800MHz)
  • DDR2 256MB SRAM memory
  • 512MB Flash Memory
  • Windows CE 6.0

Card Reader

  • DIP Style Magnetic Card Reader
  • EMV - Optional

ADA

  • Voice Guidance
  • Lighted Transaction Guidance
  • Accessible Keypad Layout

Security

  • UL291 Business Hours Vault
  • Electronic Lock or Cencon (optional)

Cash Dispenser

  • Up to 3 x 2000 Note Removable Cassette

Dimensions

  • Height = 68”
  • Width = 36”
  • Depth = 25”
  • Weight = 415 lbs (With PCDU cash dispenser and packing)

Power Requirements

  • 110/220 VAC ±10%, 50/60 Hz, 145 Watts

Operating Environment

  • Temperature range  : 40°F - 95°F
  • Relative humidity : Non-condensing = 15% - 85%
